The structural principle of intelligent float level transmitter
UQZ-17XS level transmitter consists of a magnetic float level sensor and a smart HART plate (current converter) in two parts, float and level changes in synchronization, the control reed pull off, so that the internal resistance of the sensor In a linear change, the converter converts the change in resistance into a 4~20mA standard current signal and superimposes the HART digital signal output.
main feature
In addition to the inherent features of general liquid level transmitters, UQZ-17XS intelligent float level transmitters have the following features:
1 , Â The intelligent electronic component is composed of a motherboard and a liquid crystal panel;
3 , Â In line with the HART protocol, the HART communication hand-held device or microcomputer can be used for double-sided communication with the smart meter without interrupting the output signal. It is suitable for explosion-proof or inconvenient disassembly and assembly of the instrument. Measurement, process parameters, equipment configuration, calibration, and diagnosis Information is accessed or modified through the HART protocol; Â Â Â Â Â Â
4 , Â Two-way communication with the host in a distributed control system using the HART protocol;
5 , Â With EEPROM , no data is lost due to power failure.
Model parameters of intelligent float level transmitter
UQZ-17XS intelligent float liquid level transmitter uses magnetic float ball as the measuring component. Through the magnetic coupling action, the resistance inside the sensor changes linearly. The change of resistance is converted into 4~20mA standard current signal by intelligent converter , and superimposed. HART signal output or local liquid crystal display, can display the percentage of liquid level, 4~20mA current and liquid level value in the field. The remote control supply room can realize automatic detection, control and recording of liquid level. The meter is suitable for the sewage treatment in the petroleum, chemical, electric power, light industry and pharmaceutical industries and the measurement of the liquid level in various atmospheric and pressure vessels, especially for the liquid level measurement of underground storage tanks and storage tanks.
Measuring range: 0~

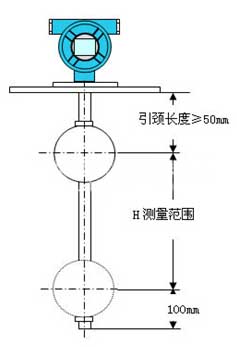

( See Figure 1 for the relationship between the measurement range H and the length of the neck and the total length. ) Â Â Â
Supply voltage: 12~36V Â DC
Output signal: two-wire 4~20mA.DC superimposed digital signal, the user selects the square or linear output;
Load resistance: 250 Ω
Measurement accuracy: ±
Ambient temperature: -40~80 °C
Working temperature: -20~120 °C
Nominal pressure: ≤ 1.6MPa
Flange standard: A : JB/T82.1-94 (flat flange)
           DN100   PN1.6 ball φ 90
         B : JB/T82.1-94 (flat flange)
            DN80  PN0.6 ball φ 76
Medium density: ≥ 0.65g/cm
Medium viscosity: ≤ 0.015PaS
Wetted material: stainless steel
Protection level: IP65    Â
Product selection table
Model | Specification code | Content | ||
UQZ-17XS | Â | Magnetic float level transmitter | ||
 | A |  |  | Top-mounted |
B | Â | Â | Side side | |
C | Â | Â | Side bottom | |
D | Â | Â | Bracket type | |
 | H |  | Measuring range H | |
 |  | * | Lead neck length ( please specify when selecting type 01 ) | |
UQZ-7XS | â–¡ | â–¡ | â–¡ | Â |
Selection example: UQZ-17XS-01-2000 ( leading neck length: 100mm ) is a top-mounted magnetic float ball level transmitter with a measuring range of 2000mm and a neck length of 100mm .
Installation form
UQZ-17XS magnetic float ball level transmitter is divided into the following four installation methods
A : Overhead installation    B : side installation   C : side bottom installation  D : bracket mounting
(Please indicate the installation form and neck length L value when ordering .)
