Buffer and Torque Test Procedure for Dynamic Torque Tester

Buffer and Torque Test Procedure for Dynamic Torque Tester

Dynamic torque tester buffer test range, installation, inspection:

1, the test range of the buffer

2. Installation of the buffer: According to the needs of the test, select the bearing and the spring, then rotate it counterclockwise to install the spring.

3. Check of the buffer:

A. Check the buffer before use. Dust, lack of grease and bending of the bushing will affect the accuracy of the torque test.

B. Regularly check the buffer. Repeated use of the buffer for a long time will cause the buffer to wear and affect the accuracy of the torque test. If it is worn, it needs to be replaced.

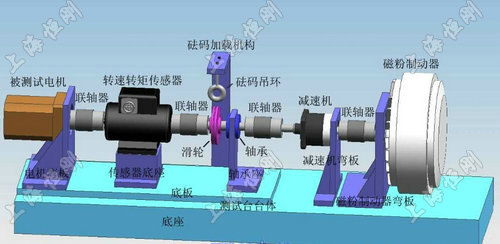

Dynamic torque tester picture

Dynamic Torque Tester Screwdriver Torque Test Procedure:

1. Install the buffer on the torque test head of the torque tester, and then assemble the batch of the screwdriver to the buffer.

2. Press the screw switch to the automatic state, use your fingers to reverse the force and relax the spring of the bumper a little.

3. Press the peak button to select the PEAK peak hold status.

4. Press the clear button and the torque value on the LCD will be zero.

5. Press the screwdriver to switch to the automatic, twist the screwdriver until the screwdriver automatically stops.

6. When the screwdriver is stopped, the torque value displayed on the LCD is the torque output from the screwdriver. Repeat the above 2 to 5 operation to verify the output torque of the screwdriver. Loosen or tighten the torque adjustment nut of the screwdriver to make the torque of the screwdriver meet the needs of use.

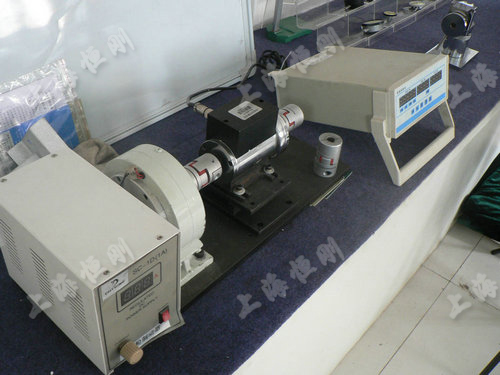

Dynamic torque tester picture

The above is the detailed explanation of the buffer and torque test program of Henggang Dynamic Torque Tester. If you have any questions, please feel free to contact us!
